AC220V Multi Function Timer Relay Module Time Delay Relay Signal on Relay on Timer Relay
AC220V Multi Function Timer Relay Module Time Delay Relay signal on relay on Timer Relay Model Selection Table Technical
Send your inquiryDESCRIPTION
Basic Info.
Model NO. | ZHRT1-E |
Protective Characteristics | Sealed Relay |
Action Principle | Electronic Type |
Size | Miniature |
Type | Time Realy |
Carton | 100PCS |
Key | Timer Delay Relay |
Carton Size | 495*240*171mm |
Name | Time Relay |
Weight | 0.1kg |
Transport Package | Carton Package |
Specification | Size: 91.4*18*66.2mm |
Trademark | AKMAN |
Origin | Zhejiang China |
HS Code | 8536490000 |
Production Capacity | 1000PCS/Week |
Product Description

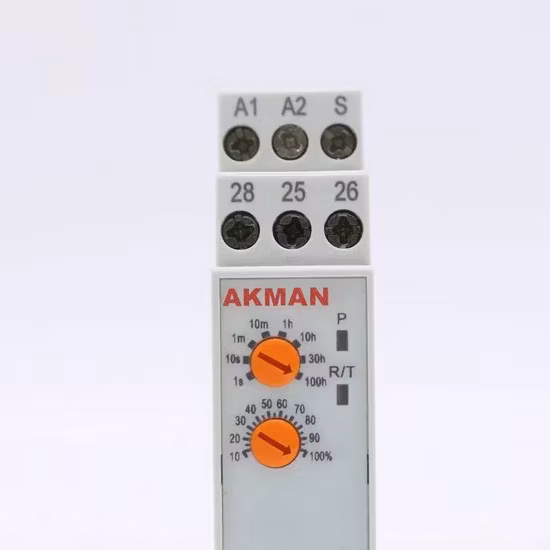

AC220V Multi Function Timer Relay Module Time Delay Relay signal on relay on Timer Relay
Model Selection Table
Model | Function | Rated supply voltage | Contact | Delay range |
ZHRT1-E | Signal on,relay on;signal off, delay of relay off | DC12V DC24V AC110V AC220V AC380V AC/DC24V~240V | 1:1C/O, 2:2 C/O 2T:1C/O+1 instant C/O | 0.1s~100h |
Technical Parameters
Rated control supply voltage | DC12V,DC24V AC110V,AC220V,AC380V AC/DV 24V~240V 50/60Hz |
Rated power consumption | AC:≤1.5VA DC: ≤1W |
Delay range | 0.1s~100h / multi range adjustment |
Setting accuracy | ≤5% |
Repeat accuracy | ≤0.2% |
Repeat power-on interval | ≥200ms |
Electrical Life | 105 |
Mechanical life | 106 |
Altitube | ≤2000m |
Contact configuration capacity(A) | 1C/0 8A;2 C/O 5A |
IP Class | IP20 |
Class of pollution | 3 |
Use category | AC-15 |
Contact capacity | Ue/le AC240V/1.5A,AC380V/0.95A |
Output type | 1C/O;2C/O;1C/O+1 instant C/O |
DIN rail Standard | Width:35mm(IEC/EN60715) |
Features:Built-in microcontrollers, 0.1s ~100h wide delay range, repeat accuracy≤0.2%. Knob setting,LED indicator shows working status.Variety of optional rated voltage. DIN rail mounting
Function diagramSignal on,relay on;signal off,delay of relay off
Wiring Diagram
Dimensions(mm)
