DESCRIPTION

Basic Info.

Model NO.	15F-2-12V/24V
Certificates	RoHS, UL, TUV, CQC
Contact Form	1 From a, 1 F ROM C
Coil Voltage	5 6 9 12 24 48VDC
Protective Characteristics	Sealed Relay
Type	Electric Parameter Relay
Action Principle	Electronic Type
Electricity Type	DC
Load	High Power Relay
Usage	Car Relay, Household Appliances Relay
Transport Package	Carton
Specification	36g
Trademark	ELGC
Origin	Zhejiang, China
HS Code	8536411090
Production Capacity	20000 Pieces Per Day

Packaging & Delivery

Package Size 48.50cm * 35.00cm * 22.00cm Package Gross Weight 30.000kg

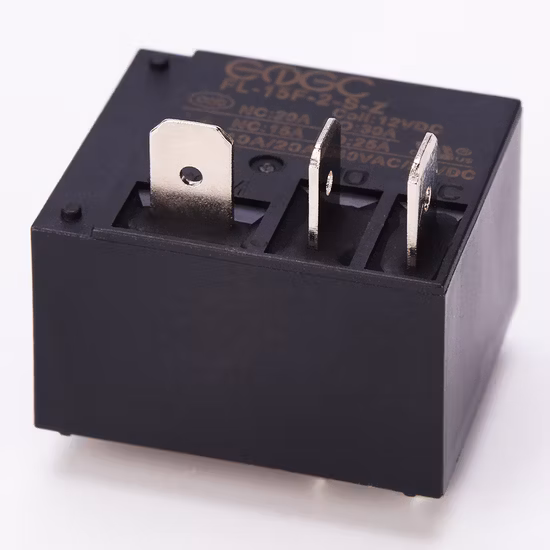

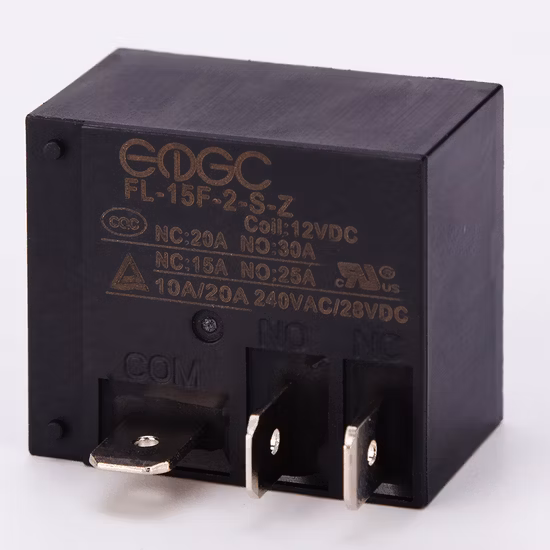

Product Description

QC&PC terminalsHigh dielectric strength 3,000VAC Optional flanged case for panel mountingClass B/F available Conform to RoHS,ELV directive

Contact Form	1H/1D/1Z
Contact Material	Silver Alloy
Load	Resistive load(COSФ=1)
Contact Ratings	1H: 25A(30A)240VAC/20A 28VDC 1D: 15A 240VAC/10A 28VDC 1Z: 20A/10A 240VAC/28VDC
Minimum load	500mA 5VDC
Max Switching Voltage	250VAC/30VDC
Max Switching Current	30A
Max Switching Power	7200VA/560W
Contact Resistance	100mΩMax at 6VDC 1A
Electrical	100,000 Operations(at30Operations/minute)
Mechanical	10,000,000 Operations(at300Operations/minute)

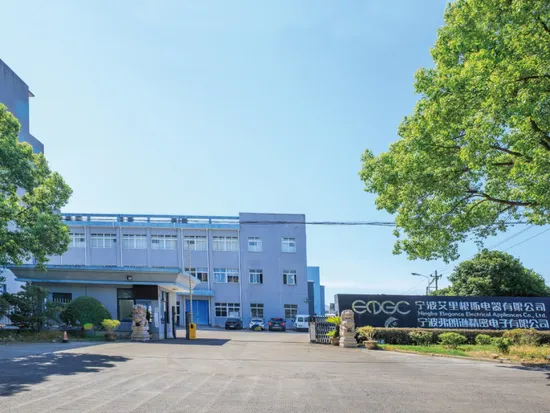

Company Profile
Production Environment
FAQ
Q1.Can I have sample oder for relay?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.Q2. What about lead time?
A:Sample needs 3-9 days, mass production time needs 1-2 weeks for order quantity more thanQ3. Do you have any MOQ limit for relay order?
A: Low MOQ, 1pc for sample checking is availableQ4. How do you ship the goods and how long dose it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.Q5. How do you proceed order for relay ?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.Q6. Is it ok to print my logo on relay product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
